Place of Origin: | China |
Brand Name: | SUFA |
Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
Model Number: | Q41F |
Minimum Order Quantity: | 1 |
---|---|
Price: | USD20~500 /PC |
Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
Delivery Time: | within 8-12 working days upon receipt of payment |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/P |
Supply Ability: | 500PCS per month |
Size: | 1"-6"x 4" | Pressure: | 150LB |
---|---|---|---|
Connection Type: | Thread | Body/Bonnet: | WCB,LCC,LCB,CF8,CF8M,CF3M |
Ball/Stem: | 316,316L,304 | Name: | CF8M Stainless Steel Reduced Bore 3 Way 1000 PSI Npt Threaded Ball Valve |
Highlight: | 316 ss ball valve,stainless steel threaded ball valve,1000 PSI npt threaded ball valve |

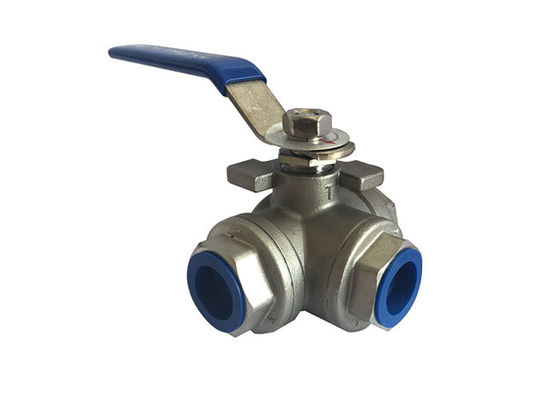

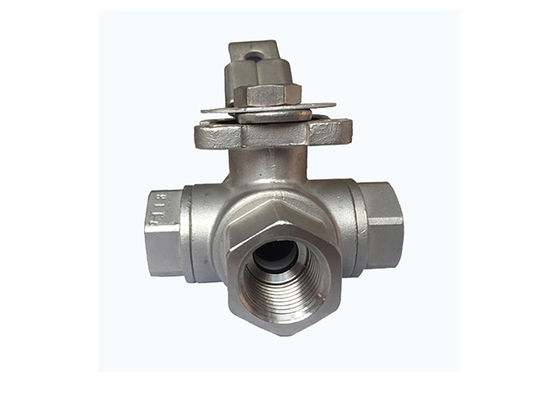

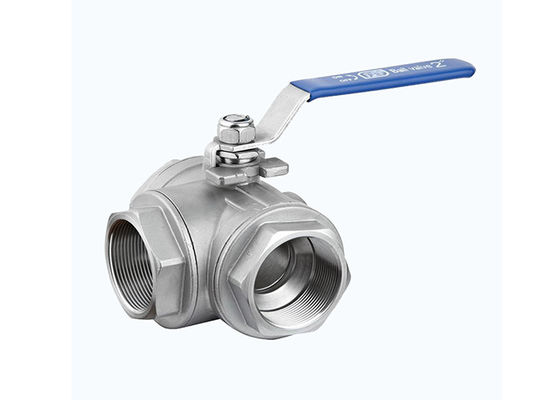

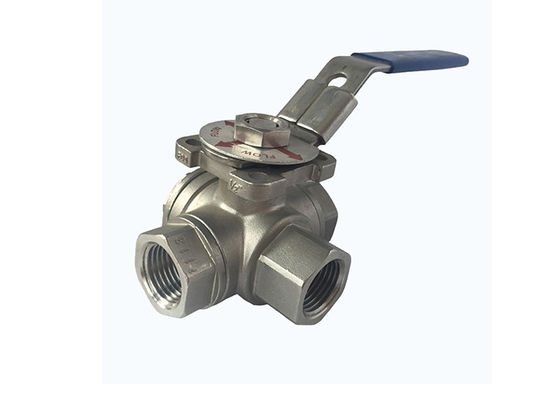

CF8M Stainless Steel reduced bore 3 way 1000 PSI npt threaded ball valve
Summary
available in size 1''-2'' class 150 and 300.The TA Series valve offers versatility,performance and reliability at a reasonable cost.This versatile valve offers various seat options to suit specific service requirments. It utilizes a raised fire-lip design that performs two critical functions.Firstly it acts as a metal backup seat,meeting API 607 through leakage requiremrnts.Secondly,it protects the ID of the primary seat from abrasion and seat cold flow.
The series TA valve feature comply with API 607,API 6D and Nace MR-01-075 requirements.
General Design Features
1. Design Standard: ANSI B 16.34
2. Testing Standard: API 598
3. Certification: ISO9001, CE
Name: | Stainless Steel Full Bore Three way flow control ball valve |
Size: | DN10-DN50 |
Top flange | ISO 5211 |
Normal pressure: | 1000PSI |
Body: | CF8/CF8M |
Stem: | CF8/CF8M |
Seat: | PTFE |
Suitable temperature: | -10~200 |
Medium: | Water, Oil, Gas |
Material | SUS201, SUS304,SUS316, SUS 304L , SUS 316L(CF8, CF8M),etc. |
Size | 1/4" -4" (DN6-DN100) |
pressure | 1000psi |
Temperature range | -20-300 degree C |
connection | Butt weld |
sealing | PTFE,RPTFE,PPL ETC |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Certification | CE, ISO, our factory has been inspected by SGS and TUV |
Locking | With or without |
Capacity to produce | 100,000.00pcs/week |
Main products | Includes ball valve, butterfly valve, check valve, gate valve, strainer, etc. |
Application | Suitable for fire piping system, air, steam, water,gas, oil , home decoration , equipment and so on |
Buyer's drawing or designs are available | |
Package | Cartons without pallet |
Cartons with pallet | |
Double woven bags | |
Or as buyer's requirements | |
Delivery Details | According to the quantities and specifications of each order |
Normal delivery times is from 30 to 45 days after receiving the deposit |
