Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve

Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve

  • Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve
  • Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve
Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve
Product Details:
Place of Origin: China
Brand Name: SUFA
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20~500 /PC
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability: 500PCS per month
Contact Now
Detailed Product Description
Size: DN125 Pressure: 150LB
Connection Type: Thread Body/Bonnet: WCB,LCC,LCB,CF8,CF8M,CF3M
Ball/Stem: 316,316L,304 Name: DSQ41F-16 DN100 DIN Standard Cast Iron Soft Seal Ball Valve
Highlight:

trunnion mounted ball valve

,

stainless steel threaded ball valve

,

cast iron soft seal ball valve

DSQ41F-16 DN100 DIN Standard Cast Iron soft seal Ball Valve



Design Features

1. Adjustable fire-safe stem packing
2. Machined fire-lip act as meta backup seat has excellent fire-safe capability
3. Anti-blow out stem
4. Anti-static device
5. Full rated bi-directional shut-off
6. Optional lockable handle
7. Spiral wound gasket,prevent external leakage
8. Full rated dead end service



Main Parameter Specifications

1. Design and Manufacture: DIN3357/EN12516

2. Face to Face : DIN3202/EN558-1

                            DN50-DN100(F4)

                            DN125-DN200(F5)

3. End Flange Dimensions : DIN2533/EN1092-2/ISO7005-2

4. Nominal Pressure : 1.6Mpa

5. Pressure test : ISO5208

6. Materials: EN-JL 1040 or EN-GJL-250 (GG25) cast iron, ductile iron

Main parts and materials

No. Part Name Material
1 Body Cast Iron (FC200/FCD-S)
2 Bonnet Cast Iron ( FC200/FCD-S )
3 Nut Carbon steel
4 Bolting Carbon steel
5 Ball Stainless steel(SS304/SS316)
6 Seat PTFE/RPTFE/TFM1600
7 Gasket PTFE
8 Stem Stainless steel(SS304/SS316)
9 Stem packing PTFE
10 Gland flange Cast Iron (FC200)
11 Stop collar Carbon steel
12 Circlip Steel
13 Lever Ductile iron (FCD450)
14 Gland boltl Carbon steel

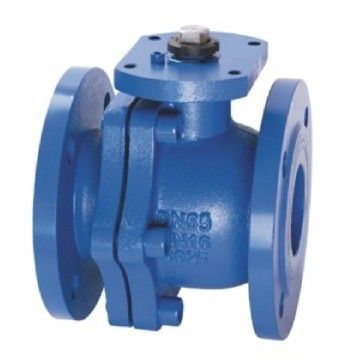

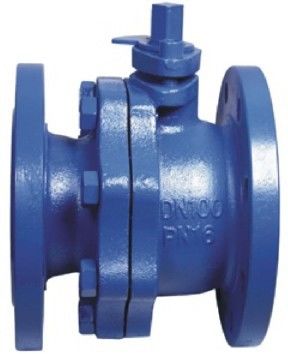

Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve 0Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve 1



Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve 2
