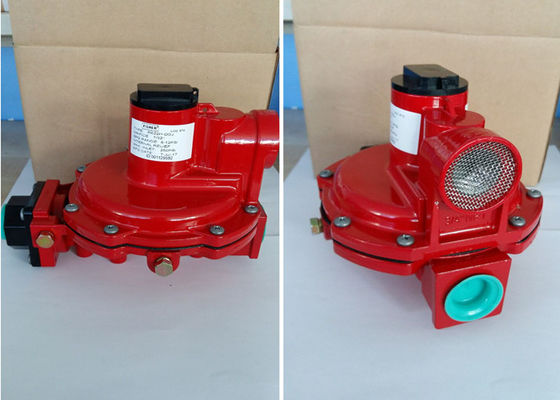

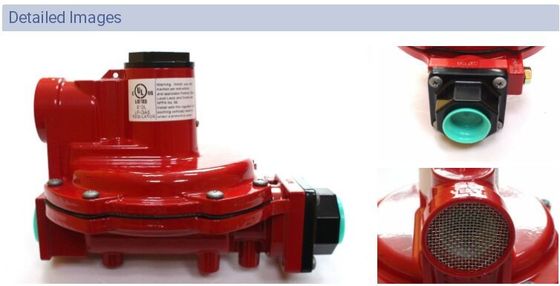

Fisher R622H-DGJ 250 Psi Fisher Differential Pressure Regulator Optional Spring Range

Emerson Fisher R622H-DGJ LPG Gas Regulator


Fisher R600 Series second-stage regulators are Underwriters Laboratories (UL) listed designed to reduce the outlet pressure from a first-stage regulator, usually 10 psig / 0,69 bar to 11-inches w.c. / 27 mbar, in domestic installations. Screened drip-lip vent has standard orientation over the inlet with other orientations available. Fishersecond-stage regulators are painted palm green for easy identification. The second-stage R600 Series regulators are equipped with stainless steel inlet screen to reduce the amount of debris entering the regulator.

Type R622 is designed for Two-Stage domestic applications up to 1 400 000 BTU per hour / 15,8 SCMH. The Type R622’s time proven design and corrosion resistant materials, provide a recommended replacement life of 20 years. Type R622 contains a high performance relief valve and a large 3/4-inch screened vent to limit downstream pressure to less than 2 psig / 0,14 bar in an overpressure situation as required by NFPA 58.

The relief valve design exceeds the industry standard by limiting the downstream pressure to 2 psig / 0,14 bar even in a double failure situation when used with a Type R622H or R122H First Stage Regulator. The Type R622 is adjustable from 9 to 20-inches w.c. / 22 to 50 mbar. For easy system checks, the Type R622 has 1/8-inch NPT built-in gauge taps, orificed to a No. 54 drill size, on both the upstream and downstream sides. This regulator also features a large 3/4-inch drip-lip vent design.


Features
Compact Design
High Capacity
Protective Inlet Screen
Internal Relief
Light Weight
Inlet and Outlet Pressure Gauge Taps

Specifications

Body Sizes and End Connection Styles
3/4"FNPT*3/4"FNPT
Maximum Allowable Inlet Pressure
250psig / 17.2 bar

Outlet Pressure Ranges
8-12psi

Pressure Registration
Internal

Temperature Capabilities
-20° to 160°F / -29° to 71°C
