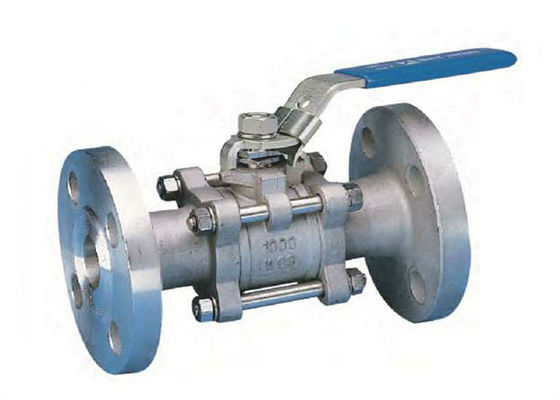

3 PC Flanged End Stainless Steel Threaded Ball Valve Spring Loaded Ball Valve

3 PC Flanged End Stainless Steel Threaded Ball Valve Spring Loaded Ball Valve

  • 3 PC Flanged End Stainless Steel Threaded Ball Valve Spring Loaded Ball Valve
3 PC Flanged End Stainless Steel Threaded Ball Valve Spring Loaded Ball Valve
Product Details:
Place of Origin: China
Brand Name: SUFA
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20~500 /PC
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability: 500PCS per month
Contact Now
Detailed Product Description
Size: 1"-6"x 4" Pressure: 150LB
Connection Type: Thread Body/Bonnet: WCB,LCC,LCB,CF8,CF8M,CF3M
Ball/Stem: 316,316L,304 Name: 3 PC Flanged End Ball Valve According To DIN 3020- F1
High Light:

trunnion mounted ball valve

,

stainless steel threaded ball valve

,

3 pc flanged end ball valve

3 PC flanged end ball valve according to DIN 3020- F1

Specifications

1. Size: 1/2" - 4" (DN15- DN100)

2. Body Working pressure : 1000WOG(PN63)

3. Flange working pressure : PN40

3. Working temperature: - 20 -200 centigrade

4. Investment casting

6. Blow - out proof stem

6. Anti - static device (option)

7. ISO 5211 mounting pad - 2010 M(option)

8.Locking device

9. ISO 5211 directing mounting pad -2010D option

Flange dimension :DIN 2501- PN40

Face to face : DIN 3202 - F1



Main parts and materials

No. Part Name Material
1 Body Cast Iron (FC200/FCD-S)
2 Bonnet Cast Iron ( FC200/FCD-S )
3 Nut Carbon steel
4 Bolting Carbon steel
5 Ball Stainless steel(SS304/SS316)
6 Seat PTFE/RPTFE/TFM1600
7 Gasket PTFE
8 Stem Stainless steel(SS304/SS316)
9 Stem packing PTFE
10 Gland flange Cast Iron (FC200)
11 Stop collar Carbon steel
12 Circlip Steel
13 Lever Ductile iron (FCD450)
14 Gland boltl Carbon steel




3 PC Flanged End Stainless Steel Threaded Ball Valve Spring Loaded Ball Valve 0

3 PC Flanged End Stainless Steel Threaded Ball Valve Spring Loaded Ball Valve 1
