Screwed End 1500WOG Stainless Steel Ball Valve With Locking Device

Name: Screwed End 1500WOG Stainless Steel Ball Valve With Locking Device
Brand: Suzhou Ephood Automation Equipment Co., Ltd.
SKU: Q41F
Price: 260.00 USD
Availability: InStock

All Products

Gas Pressure Regulator
(18)

Fisher Gas Regulator
(39)

Differential Pressure Transmitter
(15)

DSC Steam Trap
(12)

Stainless Steel Ball Valve
(22)

Water Gate Valve
(15)

Stainless Steel Globe Valve
(8)

Water Butterfly Valve
(17)

Stainless Steel Check Valve
(8)

Electric Motor Operated Valve
(9)

Pneumatic Operated Valve
(5)

Digital Valve Positioner
(4)

Rexroth Solenoid Valve
(12)

Tend Limit Switch
(14)

Best Products

Chemical Resistant Three Piece Ball Valve Full Bore Titanium Or Ss Material

Wafer Type Cast Iron Ball Valve DN50 1.6Mpa DIN Standard Anti - Static

Hard Seal Stainless Steel Ball Valve Floated Spring Loaded Ball Valve

I'm Online Chat Now

Screwed End 1500WOG Stainless Steel Ball Valve With Locking Device

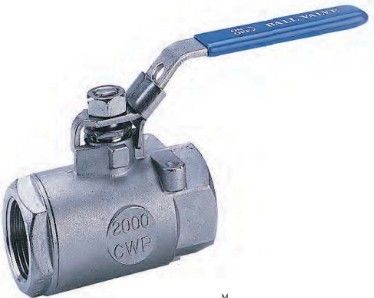

Large Image : Screwed End 1500WOG Stainless Steel Ball Valve With Locking Device

Product Details:

Place of Origin:	China
Brand Name:	SUFA
Certification:	(DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number:	Q41F

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD20~500 /PC
Packaging Details:	Wooden box, ply-wood box, carton box, pallet
Delivery Time:	within 8-12 working days upon receipt of payment
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability:	500PCS per month

Contact Now

Screwed End 1500WOG Stainless Steel Ball Valve With Locking Device

Description

Size:	1"-6"x 4"	Pressure:	150LB
Connection Type:	Thread	Body/Bonnet:	WCB,LCC,LCB,CF8,CF8M,CF3M
Ball/Stem:	316,316L,304	Name:	DN40(1-1/2") 2-pc CF8M And WCB Screwed End 1500WOG Ball Valve
Highlight:	316 ss ball valve , stainless steel threaded ball valve

DN40(1-1/2") 2-pc CF8M and WCB Screwed End 1500WOG Ball Valve

Specifications
- Standard port
- Blow-out proof stem
- Anti-static device(option)
- Locking device

2007A Type DN40 (1-1/2") 2-pc CF8M and WCB Screwed End 1500WOG Ball Valve

Features

- Standard port, 1/4”~2” (DN8-DN50)

- Working Pressure : 1/4"~1" -2000WOG (PN150)

1-1/4"~2" -1500WOG (PN100)

- Working Temperature: -20°C~200°C(-4ºF~392ºF)

- Investment casting

- Blow-out proof stem

- Anti-static device(option)

- Locking device

- Tapped & drilled mounting pad (option)

- Thread type : ASTM B1.20.1(NPT) DIN2999 & BS21 ISO7/ 1& EN10226

Main parts material
Part name	Material
Body/Bonnet	WCB,LCC,LCB,CF8,CF8M,CF3M
Ball/Stem	316,316L,304
Seat	PTFE/PEEK

Screwed End 1500WOG Stainless Steel Ball Valve With Locking Device 0

Screwed End 1500WOG Stainless Steel Ball Valve With Locking Device 2

Tag:

trunnion mounted ball valve,

stainless steel threaded ball valve,

316 ss ball valve
