Detailed Product Description
Name: Fisher CS400 Pressure Reducing Valve End Connetion: 1.5" NPT
Inlet Pressure: 175psi(12.1Bar) Outlet Pressure Range: 6 To 8" W.c. / 15 To 20 Mbar
Pressure Registration: Internal Or External Flow Rate: 120m³/h
Highlight:

fisher regulator valve

,

fisher flow control valve

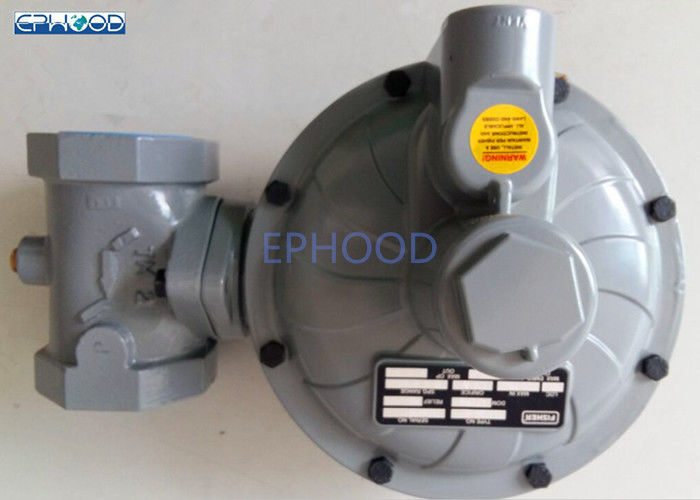

Emerson Fisher CS400 Series Commercial Pressure Reducing Valve Gas Regulator
Fisher CS400 Series direct-operated, spring-loaded regulators provide pressure-reducing applications for commercial and light industrial installations. This flexibility is provided by the numerous body sizes and end connections, outlet pressure settings, orifice sizes, as well as the option for internal or external pressure registration. In addition to application flexibility, the CS400 Series offers multiple overpressure protection options to meet your demands on application requirements.

Features
Wide Variety of Body Sizes and End Connections
Fixed Factor / Pressure Factor Measurement (PFM) Accuracy Capabilities
Field Convertible from Internal Sensing to External Sensing for Wide-Open Monitor Construction
Available in Gray Cast Iron, Ductile Iron, and Steel Body Materials
Only Standard Tools Required for Pressure Adjustment and Orifice Removal
Easy to Maintain

Specifications
Body Material, End Connection Size and Styles, Pressure Rating
Gray Cast Iron,1-1/2”NPT* 1-1/2”NPT and 2”NPT*2”NPT
175psi/12.1bar
Ductile Iron, 1-1/2”NPT* 1-1/2”NPT and 2”NPT*2”NPT
290psi/20bar
Maximum Inlet Pressure
175 psig / 12.1 bar ,See Table 2
Outlet Pressure Ranges
Regulator: See Table 5
Pressure Registration
Internal or External
Approximate Weight:With Threaded Body
Type CS400: 5 kg
PED Conformity Statement and Information
The CS400 Product Series is in conformity with the Pressure Equipment Directive PED 97/23/EC.The exception to this previous statement is the Type CS403 which is not yet certified to conform
with the PED Directive.
Pressure regulator does not require any supplementary upstream safety accessory for protection against overpressure compared with its design pressure PS, when upstream reducing station is sized for a max downstream incidental MIPd <= 1.1 PS.
Principle of Operation
Type CS400 Base Regulator Operation
Refer to Figure of Fisher CS400 Series When downstream demand decreases, the pressure under the diaphragm increases. This pressure overcomes the regulator setting (which is set by the regulator control spring). Through the action of the pusher post assembly, lever, and valve stem, the valve disk moves closer to the orifice and reduces gas flow. If demand downstream increases, pressure under the diaphragm decreases. Spring force pushes the pusher post assembly downward, the valve disk moves away from the orifice, and the gas flow increases downstream as the regulator opens in response to the decreased pressure underneath the diaphragm.
The Type CS400IR regulator includes an internal relief valve for overpressure protection. If the downstream pressure exceeds the regulator setting by 7 to 28 inches w.c. / 17 to 69 mbar (depending on the main spring used), the relief valve opens and excess gas is vented through the stabilizer vent in the upper spring case.
General Installation Instructions
Before installing the regulator,

  • Check for damage, which might have occurred during shipment.
  • Check for and remove any dirt or foreign material, which may have accumulated in the regulator body.
  • Blow out any debris, dirt or copper sulfate in the copper tubing and the pipeline.
  • Apply pipe compound to the male threads of the pipe before installing the regulator.
  • Make sure gas flow through the regulator is in the same direction as the arrow on the body. “Inlet” and “Outlet” connections are clearly marked.
  • When designing a pressure reducing station using a CS400 Series regulator, make an analysis if it is necessary to take into account the effects of wind, snow, and temperature to avoid unnecessary load and movement to the flanges of the equipment.

Installation Location
The installed regulator should be adequately protected from vehicular traffic and damage from other external sources.

Table 5. Outlet Pressure Ranges

TypeOUTLET PRESSURE RANGESPRINGSPRING WIRE DIAMETERSPRING FREE LENGTH
COLORInchmmInchmm
CS4003.5 to 5" w.c. / 9 to 12 mbarRed0.0982.494.18106
4.5 to 6.5" w.c. / 11 to 16 mbarPurple0.0802.034.32110
6 to 8" w.c. / 15 to 20 mbarGold0.1082.744.18106
7.5 to 11" w.c. / 19 to 27 mbarBlue0.1102.794.40112
10 to 14" w.c. / 25 to 35 mbarUnpainted0.1102.794.40112
12 to 19" w.c. / 30 to 47 mbarGreen0.1122.854.70119
18" w.c.to 1psig / 45 to 69 mbarOrange0.1203.054.94125
1 to 2 psig / 69 to 138 mbarBlack0.1403.564.66118
2 to 5.5 psig/ 138 to 380 mbarYellow0.1724.374.42112
