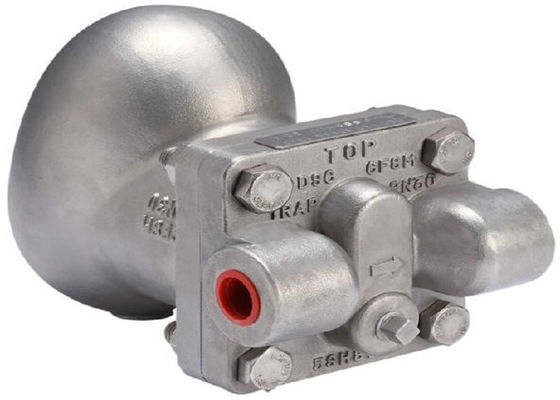

Name: FSS5 Model CF8M Float Ball Type Steam Trap Stainless Steel Material
Brand: DSC
SKU: FSS5
Rating: 4.8 (181 reviews)

Home Products DSC Steam Trap

FSS5 Model CF8M Float Ball Type Steam Trap Stainless Steel Material

Product Details:

Place of Origin:	Made In China
Brand Name:	DSC
Model Number:	FSS5

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Each set packed in one carton
Delivery Time:	4-7work-days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50sets in 7days

Contact Now

Detailed Product Description

Name:	FSS5 Model Stainless Steel Material Steam Trap	Material:	CF8M , S.S 316
End Connection:	1/2"(DN15),3/4"(DN20),1"(DN25)	Max Operating Pressure:	30Bar
Working Temperature:	320℃	End Connection Style:	Thread OR Flange
Highlight:	steam trap valve , float ball type steam trap , SS316 ball float steam trap

DSC Brand FSS5 Model CF8M Stainless Steel Material Float Ball Type Steam Trap

Features:

1. The steam trap has all stainless steel shell, beautiful and easy, corrosion resistance.
2. Top with inspection hole, can know this steam trap is normal or not .

3. Parts adopt stainless steel and hardened chrome steel seat, wear-resisting corrosion resistance.

4. This type steam trap cannot be used for superheated steam.

5. Can discharge a large number of condensate gas when the steam trap valve is switched on.

6. Back pressure resistance ability is strong, so the steam trap is suitable for the recovery system.

7. To drain continuously with low noise.

8. The distributor can be mounted to prevent water hammer shock.

9. The device must be level, not skewed.

10. Can supply parts according to customer demand.

this type steam trap's specifications:

Model	Port size(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	MOP(Mpa)	Weight(kg)
FSS5	15.20.25	125	97	61	191	22	3.0	5

* NPT,PT,SW can be supplied

Material of main parts for the steam trap:

Body	304 stainless steel
	304L stainless steel
	316 stainless steel
Float ball	stainless steel
Mechanical structure	stainless steel
Seat	hardened chrome steel
Exhaust valve	stainless steel
Sensible heat unit	stainless steel
Screw and nut	stainless steel

CONDENSATE DISCHARGE CAPACITY IN KG/HR.
