Place of Origin: | Made In China |
Brand Name: | DSC |
Model Number: | 741 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Each set packed in one wooden case |
Delivery Time: | 4-7work-days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 50sets in 7days |
Name: | Stainless Steel Inverted Bucket Steam Trap | Material: | SS304 |
---|---|---|---|
End Connection: | DN15,DN20,DN25 | Max Operating Pressure: | 28Bar |
Type: | Inverted Bucket | End Connection Style: | Thread End |
Highlight: | steam trap valve,flanged steam trap,DSC Inverted Bucket Steam Trap |

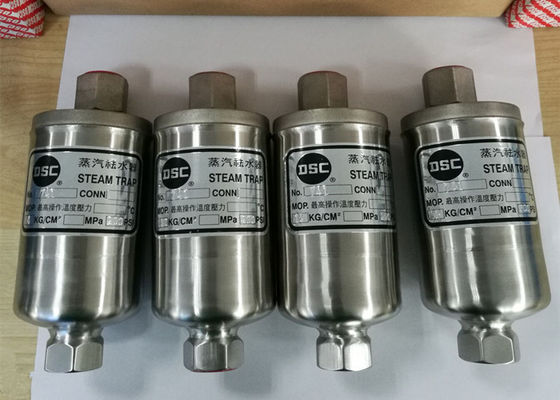

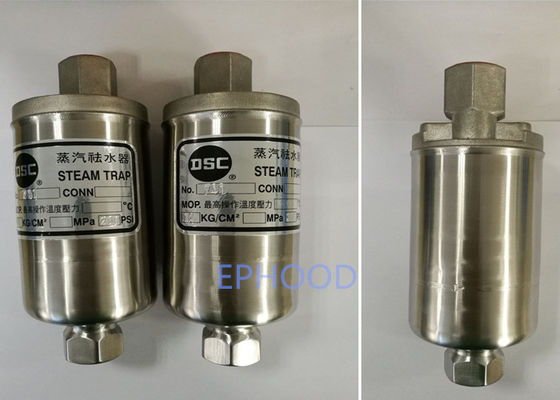

741 Model Stainless Steel Inverted Bucket Steam Trap
Two years warranty
Features:
Body Material:stainless steel
Max temp:300 degree
Operating pressure:
741 Model -- 28bar
742 Model -- 28bar
743 Model -- 30bar
744 Model -- 30bar
745 Model -- 30bar
746 Model -- 30bar
NPT,BSPT,SW can be supplied
International certification:
ISO9001:2000,ISO9001:2008
Patent certificate:
ZL200920003337.2,ZL201020509246.9
Features:
1. Fully sealed stainless steel welding , Looked beautiful
2. Parts adopt stainless steel and hardened chrome steel seat,resistance to corrosion
3. Mechanical design, encounter condensate emissions immediately response
4. Can be used in the superheated steam
5. Back pressure resistance ability, is suitable for the recovery system
6. Small volume, light quality, not frozen
7. Special specifications can accept customization
Matters needing attention
1. Fully sealed design, not replacement parts
2.The device must be upright, not skewed
Model | Port size(mm) | A(mm) | B(mm) | C(mm) | MOP(Bar) | Weight(kg) |
741 | 15.20.25 | 70 | 190 | 14 | 28 | 1 |
742 | 20.25 | 70 | 224 | 14 | 28 | 1.6 |
743 | 25 | 90 | 225 | 22 | 30 | 2.3 |
744 | 32 | 114 | 289 | 30 | 30 | 3.5 |
745 | 40 | 140 | 360 | 0 | 30 | 5.7 |
746 | 50 | 190 | 425 | 0 | 30 | 10 |
Material
Body | SS304 |
SS304L | |
SS316 | |
Inverted Bucket | Stainless steel |
Mechanical Structure | Stainless steel |
Seat | Hardened chrome steel |
Strainer | Stainless steel |
Inner tube | Stainless steel |
Screw | Stainless steel |
Nut | Stainless steel |
* NPT,BSPT,SW can be supplied
* 741 outlet is 15A,742 outlet is 20A
