Place of Origin: | China |
Brand Name: | SUFA |
Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
Model Number: | Q41F |
Minimum Order Quantity: | 1 |
---|---|
Price: | USD20~500 /PC |
Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
Delivery Time: | within 8-12 working days upon receipt of payment |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/P |
Supply Ability: | 500PCS per month |
Size: | 1"-6"x 4" | Pressure: | 150LB |
---|---|---|---|
Connection Type: | Thread | Body/Bonnet: | WCB,LCC,LCB,CF8,CF8M,CF3M |
Ball/Stem: | 316,316L,304 | Name: | Thread Connection Stainless Steel Ball Valve 1000psi Electric 3-way Ball Valve |
Highlight: | electrically operated control valve,electric actuated ball valve |

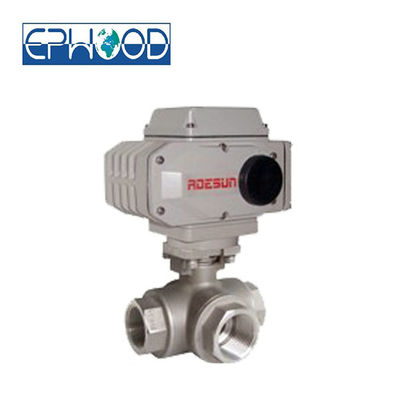

Thread Connection Stainless Steel Ball Valve 1000psi electric 3-way ball valve
Design Features
1. Adjustable fire-safe stem packing
2. Machined fire-lip act as meta backup seat has excellent fire-safe capability
3. Anti-blow out stem
4. Anti-static device
5. Full rated bi-directional shut-off
6. Optional lockable handle
7. Spiral wound gasket,prevent external leakage
8. Full rated dead end service
Main material
|
body
|
WCB
|
Stainless steel
|
ball
|
SS304
|
SS321
|
|
stem
|
SS304
|
SS321
|
|
seal
|
PTFE,PPL
|
||
packing
|
PTFE,Flexible graphite
|
||
|
suitable medium
|
steam,oil,water
|
Nitric acid alkali and corrosive medium
|
temperature
|
PTFE≤180°c, PPL≤250°c
|
Application profile
Design standard
|
Structure length
|
Test standard
|
GB/T12237-89
|
GB12221-89
|
GB/T13927-89 JB/T9092-99
|
API6D
|
ANSI B16.10
|
JB/T9092-99
|
JPI7S-48
|
JIS B2002
|
API598
|
Drawing:
Contact Person: Mr. Barry Wang
Tel: +86-1391-318-7965
Fax: 86-512-66079692
