Suzhou Ephood Automation Equipment Co., Ltd.
Gas Regulator,Pressure Transmitter,SUFA Water Valve
 |
| Place of Origin: | China |
| Brand Name: | sufa |
| Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
| Model Number: | 50~600XZ49X-16Q-0 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 50~500/SET |
| Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
| Delivery Time: | within 8-12 working days upon receipt of payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 500 SETS/MONTH |
| Model: | 50~600XZ49X-16Q-0 | Size: | DN50-DN600 |
|---|---|---|---|
| Pressure: | 1.6-16mpa | Temperature: | NBR <80C EPDM< 120CFPM <160C |
| Valve Body Material: | WCB | Applicable Medium: | Water And Oil Vapor, Etc |
| High Light: | solid wedge gate valve,stainless steel knife gate valve |
||
ADVANTAGE,
Summary:

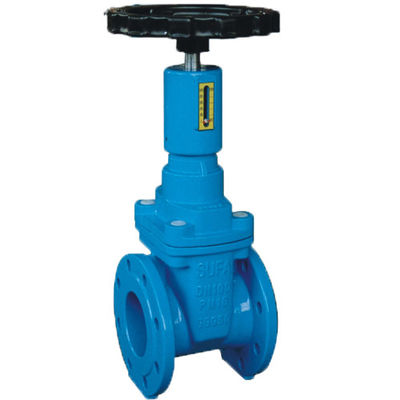

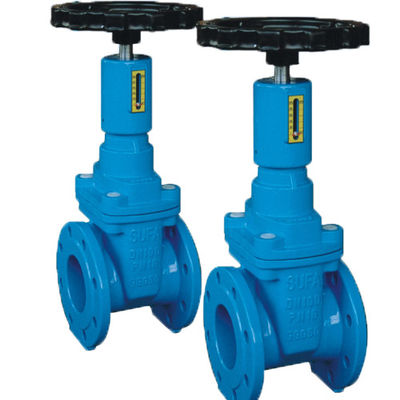

o EKB gate valve with signal is equipped with accurate position indicator and signal light (optional).Flat bottom seat ring integral with the body, inside and outside epoxy resin coating, wedge wholly bonded with rubber, "o" ring sealing, all insure excellent corrosion protection and reliable sealing capability.
O Unique Design:
o Accurate position indicator,
O With signal light, operation becomes more convenient.
o Compact design: one-piece bonnet, non rising stem.
o Flat bottom seat ring insures no dead space.
Excellent corrosion protection:
o Inside epoxy resin coating or vitreous enamel(upon request), outside epoxy resin coating.
o Socket head cap bolts, sealed with glue on the top.
O Reliable health nature:
o Epoxy resin coating is up to GB/T17219.
O Wedge bonded with rubber for the health inspection.O Trims are made of stainless steel or bronze.Scope of application:
o Fire fighting, industrial application and so on
.
Technical characteristics :
| testing standard | DIN3230 or JB/T9092 | |
| Nominal pressure | 1.0Mpa | 1.6Mpa |
| Strength testing | 1.5Mpa | 2.4Mpa |
| Functional testing | 1.1MPa | 1.76Mpa |
Design standard: BS5163
Flange: EN1092
Face to face dimensions: BS5163
Working temperature: NBR <80*C
EPDM< 120CFPM <160C
Testing standard: BS5163
Main components and their materials:
| NO. | name | material |
| 1 |
body , bonnet |
QT500-7 GGG50 with internal and External epoxy resin coating |
| 2 | wedge |
QT500-7NBR,EPDM,FPMGGG5O with NBR, EPDM OR FPM coating |
| 3 | stem |
Stainless steel:1Cr13,1Cr18Ni9TI/ 1Cr17Ni12Mo2Ti |
| 4 | stem nut,bushing |
ZCuAl10Fe3 Bronze |
| 5 | washer,O-Ring |
NBR, EPDM or FBM |
Technical characteristics :
Testing Conditions
The corner of the inventory
Installation
