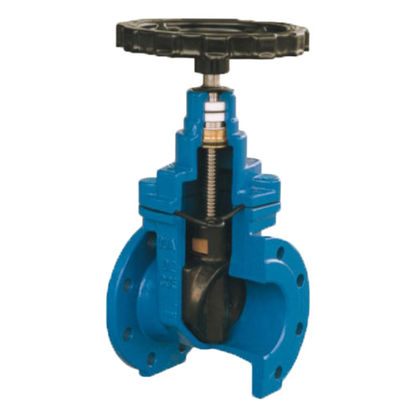

Handwheel ANSI Water 2 Inch Gate Valve Solid Wedge Gate Valve Manual Operation

Handwheel ANSI Water 2 Inch Gate Valve Solid Wedge Gate Valve Manual Operation

  • Handwheel ANSI Water 2 Inch Gate Valve Solid Wedge Gate Valve Manual Operation
Handwheel ANSI Water 2 Inch Gate Valve Solid Wedge Gate Valve Manual Operation
Product Details:
Place of Origin: China
Brand Name: sufa
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: Z41H-16c
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/SET
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500 SETS/MONTH
Contact Now
Detailed Product Description
Name: 2 Inch Handwheel ANSI 125/150 Non-rising Stem Resilient Soft Seated Cast Iron Gate Valves For Water Size: DN15-1000
Pressure: 1.6-16mpa Temperature: -29-425
Valve Body Material: WCB Applicable Medium: Water And Oil Vapor, Etc
Highlight:

solid wedge gate valve

,

resilient wedge gate valve

2 inch Handwheel ANSI 125/150 Non-rising stem Resilient Soft seated Cast iron Gate valves For Water



Features of Rising-stem Wedge Gate Valves:

Bolted bonnet
Outside screw and yoke
Rising stem and non-rising handwheel
Flexible wedge, fully guided
Metal-to-metal seat
Renewable seat ring and stem backseat
Manual operation standard, gear operator and actuation available
Butt weld end
Flange end: raised face or ring type joint



Size:2"~40"

Pressure:150LB

Material: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M,Etc.

Operation: Hand Wheel. Gear, Electricty, Etc



Standard:
Design And Manufacture: API 600, API 6D, BS1414,Etc.
Face To Face (End To End): ANSI B16.10, API 6D,Etc.
Flanged Connection: ANSI B16.5,Etc.
Butt Welded End: ANSI B16.25,Etc.
Test And Inspection: API 598, API 6D,Etc.

Technical characteristics :

testing standard DIN3230 or JB/T9092
Nominal pressure 1.0Mpa 1.6Mpa
Strength testing 1.5Mpa 2.4Mpa
Functional testing 1.1MPa 1.76Mpa
Handwheel ANSI Water 2 Inch Gate Valve Solid Wedge Gate Valve Manual Operation 0
Handwheel ANSI Water 2 Inch Gate Valve Solid Wedge Gate Valve Manual Operation 1
