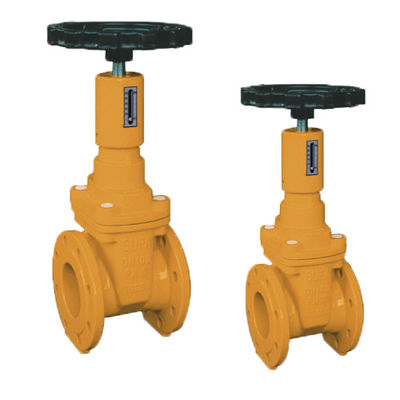

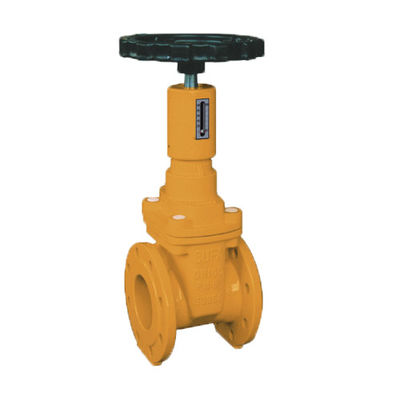

EKB Threaded Gate Valve Gas Application WCB Valve Body With Accurate Position Indicator

EKB Threaded Gate Valve Gas Application WCB Valve Body With Accurate Position Indicator

  • EKB Threaded Gate Valve Gas Application WCB Valve Body With Accurate Position Indicator
  • EKB Threaded Gate Valve Gas Application WCB Valve Body With Accurate Position Indicator
EKB Threaded Gate Valve Gas Application WCB Valve Body With Accurate Position Indicator
Product Details:
Place of Origin: China
Brand Name: sufa
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: Z41H-16c
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/SET
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500 SETS/MONTH
Contact Now
Detailed Product Description
Name: EKB Gate Valve For Gas Application Size: DN15-1000
Pressure: 1.6-16mpa Temperature: -29-425
Valve Body Material: WCB Applicable Medium: Water And Oil Vapor, Etc
High Light:

solid wedge gate valve

,

stainless steel knife gate valve

EKB Gate Valve for Gas Application



EKB gate valve for gas application is equipped with accurate position indicator.Both the internal and external shell-surface is coated with epoxy resin to avoid the shell corrosion by the media,at the same time guarantee the gas clean.Compared with metal-to-metal seal gate valve,no leakage happens. In stem position several“o”ring sealing insure excellent corrosion protection and reliable sealing capability.The stem is made of stainless steel with at least 13% Cr,and no copper is in use for this kind of valve.

■ Unique Design:
○ Accurate position indicator.
○ With signal light,operation becomes more convenient.
○ Compact design:one-piece bonnet,non-rising stem.
○ Flat bottom seat ring insures no dead apace.
■ Excellent corrosion protection:
○ Inside epoxy resin coating or vitreous enamel(upon request),outside epoxy resin coating.
○ Socket head cap bolts,sealed with glue on the top.
■ Scope of application:
○ Pure Gas application in power station,metallurgy field and so on.

SUFA EKB Resilient-seated Gate Valve For Gas Application
■ Design standard:CJ/T3056
■ Flange:DIN2501
■ Face to face dimensions:DIN3202(equal to ISO5752)
■ Testing standard:CJ/T3055
■ Working Temperature:NBR ≤80℃


Specification
Size DN50—DN600
Nominal Pressure PN10/PN16
Working Temperature -10°C~120°C
Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc
Standards:
Design standard DIN3352 F4/F5, MSS SP-70,AWWA C509/515,BS5163
Face to Face DIN3202 F4/F5, BS5163, ANSI B16.10
Flange Drilling DIN2533 PN10/PN16, ANSI 125/150,JIS10K
Test Inspection DIN3230, BS6755
Materials:
Body Cast Iron, Ductile Iron
Wedge Cast Iron, Ductile Iron
Stem Stainless steel
Sealing Ring EPDM
O Ring EPDM



















EKB Threaded Gate Valve Gas Application WCB Valve Body With Accurate Position Indicator 0EKB Threaded Gate Valve Gas Application WCB Valve Body With Accurate Position Indicator 1
EKB Threaded Gate Valve Gas Application WCB Valve Body With Accurate Position Indicator 2
