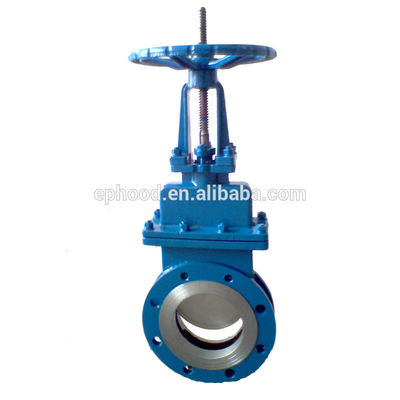

Double Flange Water Gate Valve Hand Operated Stainless Steel Knife Gate Valve

Double Flange Water Gate Valve Hand Operated Stainless Steel Knife Gate Valve

  • Double Flange Water Gate Valve Hand Operated Stainless Steel Knife Gate Valve
  • Double Flange Water Gate Valve Hand Operated Stainless Steel Knife Gate Valve
Double Flange Water Gate Valve Hand Operated Stainless Steel Knife Gate Valve
Product Details:
Place of Origin: China
Brand Name: sufa
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: Z41H-16c
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/SET
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500 SETS/MONTH
Contact Now
Detailed Product Description
Name: PZ73X Double Flange Hand Operated Knife Gate Valve Size: DN50-900
Pressure: 1.6-16mpa Temperature: -29-425
Valve Body Material: WCB Applicable Medium: Water And Oil Vapor, Etc
High Light:

stainless steel knife gate valve

,

resilient wedge gate valve

PZ73X Double Flange Hand Operated Knife Gate Valve



Features of Double Flange Hand Operated Knife Gate Valve:

Bolted bonnet
Outside screw and yoke
Rising stem and non-rising handwheel
Flexible wedge, fully guided
Metal-to-metal seat
Renewable seat ring and stem backseat
Manual operation standard, gear operator and actuation available
Butt weld end
Flange end: raised face or ring type joint



Size DN50—DN900
Nominal Pressure PN10/PN16
Working Temperature -10°C~120°C
Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc



Standard:
Design And Manufacture: API 600, API 6D, BS1414,Etc.
Face To Face (End To End): ANSI B16.10, API 6D,Etc.
Flanged Connection: ANSI B16.5,Etc.
Butt Welded End: ANSI B16.25,Etc.
Test And Inspection: API 598, API 6D,Etc.

Specification
Size DN50—DN900
Nominal Pressure PN10/PN16
Working Temperature -10°C~120°C
Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc
Standards:
Design standard DIN3352 F4/F5, MSS SP-70,AWWA C509/515,BS5163
Face to Face DIN3202 F4/F5, BS5163, ANSI B16.10
Flange Drilling DIN2533 PN10/PN16, ANSI 125/150,JIS10K
Test Inspection DIN3230, BS6755
Materials:
Body Cast Iron, Ductile Iron
Wedge Cast Iron, Ductile Iron
Stem Stainless steel
Sealing Ring EPDM
O Ring EPDM

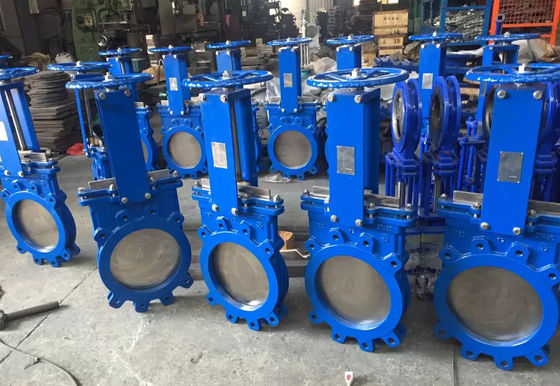

Double Flange Water Gate Valve Hand Operated Stainless Steel Knife Gate Valve 0
Double Flange Water Gate Valve Hand Operated Stainless Steel Knife Gate Valve 1
Double Flange Water Gate Valve Hand Operated Stainless Steel Knife Gate Valve 2
