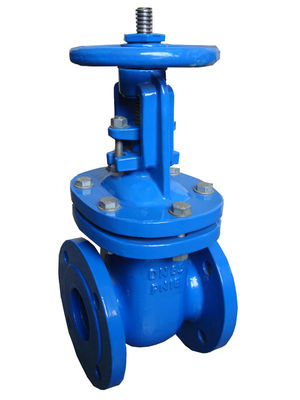

Solid Water Cast Steel Gate Valve Commercial Flanged Connection Type

Product Details:

Place of Origin:	China
Brand Name:	sufa
Certification:	(DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number:	Z41H-16c

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 50~500/SET
Packaging Details:	Wooden box, ply-wood box, carton box, pallet
Delivery Time:	within 8-12 working days upon receipt of payment
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	500 SETS/MONTH

Contact Now

Detailed Product Description

Name:	Rising Stem Solid Gate Valve	Size:	DN15-600
Pressure:	1.6-16mpa	Temperature:	-29-425
Valve Body Material:	WCB	Applicable Medium:	Water And Oil Vapor, Etc
High Light:	stainless steel knife gate valve , resilient wedge gate valve

Rising Stem Solid Gate valve

Size DN50—DN600
Nominal Pressure PN10/PN16
Working Temperature -10°C~120°C
Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc

Standard:

Design And Manufacture: API 600, API 6D, BS1414,Etc.

Face To Face (End To End): ANSI B16.10, API 6D,Etc.

Flanged Connection: ANSI B16.5,Etc.

Butt Welded End: ANSI B16.25,Etc.

Test And Inspection: API 598, API 6D,Etc.

Specification
Size	DN50—DN600
Nominal Pressure	PN10/PN16
Working Temperature	-10°C~120°C
Suitable Medium	Chemicals,air,water,steam,oil, acids,salts,etc
Standards:
Design standard	DIN3352 F4/F5, MSS SP-70,AWWA C509/515,BS5163
Face to Face	DIN3202 F4/F5, BS5163, ANSI B16.10
Flange Drilling	DIN2533 PN10/PN16, ANSI 125/150,JIS10K
Test Inspection	DIN3230, BS6755
Materials:
Body	Cast Iron, Ductile Iron
Wedge	Cast Iron, Ductile Iron
Stem	Stainless steel
Sealing Ring	EPDM
O Ring	EPDM
