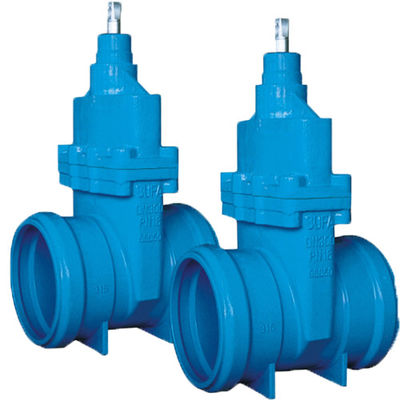

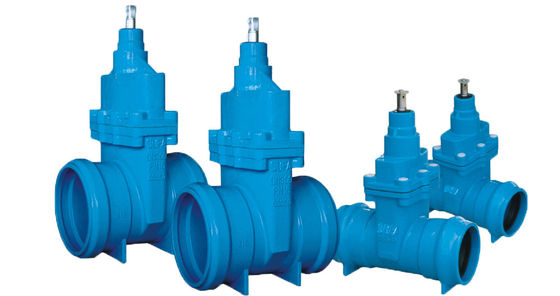

EKB Resilient Seated Solid Wedge Gate Valve WCB Valve Body With Socket Ends

EKB Resilient Seated Solid Wedge Gate Valve WCB Valve Body With Socket Ends

  • EKB Resilient Seated Solid Wedge Gate Valve WCB Valve Body With Socket Ends
  • EKB Resilient Seated Solid Wedge Gate Valve WCB Valve Body With Socket Ends
EKB Resilient Seated Solid Wedge Gate Valve WCB Valve Body With Socket Ends
Product Details:
Place of Origin: China
Brand Name: sufa
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: 80~300TZ59X-16Q-0
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/SET
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500 SETS/MONTH
Contact Now
Detailed Product Description
Model: 80~300TZ59X-16Q-0 Size: DN80-DN300
Pressure: 1.6-16mpa Temperature: NBR <80C EPDM< 120CFPM <160C
Valve Body Material: WCB Applicable Medium: Water And Oil Vapor, Etc
Highlight:

solid wedge gate valve

,

resilient wedge gate valve

ADVANTAGE;
o Summary:
o This gate valve with socket ends can be connected with pipes directly without flanges, which leads to convenient installation. Flat bottom seat ring integral with the body, inside and outside epoxy resin coating, wedge wholly bonded with rubber, "o" ring sealing, all insure excellent corrosion protection and reliable sealing capability. This valve is recommended to be installed under the surface box, operated by an adjustable extension spindle.
O Unique Design:
o Valves can be connected and sealed with pipes directly.
o Compact design: one-piece bonnet, non-rising stem.
o Flat bottom seat ring insures no dead space.
o Three "o" ring design for stem back sealing leads to maintenance-free.
O Excellent corrosion protection:
o Inside epoxy resin coating or vitreous enamel (upon request), outside epoxy resin coating.
o Socket head cap bolts, sealed with glue on the top.
Reliable health nature:

o Epoxy resin coating is up to GB/T17219-1998
o Wedge bonded with rubber for the health inspection.o Trims are made of stainless steel or bronze.
Scope of application:
o Potable water supply, industrial fields and so on.



 Technical characteristics :

testing standard DIN3230 or JB/T9092
Nominal pressure 1.0Mpa 1.6Mpa
Strength testing 1.5Mpa 2.4Mpa
Functional testing 1.1MPa 1.76Mpa



Design standard: BS5163
Application; U-PVC, PE pipe, especially suitable for underground pipe system
Face to face dimensions: BS5163
Working temperature: NBR <80*C
EPDM< 120CFPM <160C
Testing standard: BS5163



Main components and their materials:

NO. name material
1

body , bonnet

QT500-7

GGG50 with internal and

External epoxy resin coating

2 wedge

QT500-7NBR,EPDM,FPMGGG5O with NBR, EPDM OR FPM coating

3 stem

Stainless steel:1Cr13,1Cr18Ni9TI/

1Cr17Ni12Mo2Ti

4 stem nut,bushing

ZCuAl10Fe3

Bronze

5 washer,O-Ring

NBR, EPDM or FBM



Technical characteristics :

EKB Resilient Seated Solid Wedge Gate Valve WCB Valve Body With Socket Ends 0

EKB Resilient Seated Solid Wedge Gate Valve WCB Valve Body With Socket Ends 1
