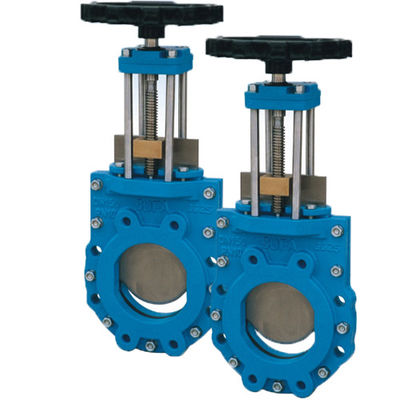

SUFA Brand Knife Water Gate Valve Corrosion Protection For Water Supply Industry

SUFA Brand Knife Water Gate Valve Corrosion Protection For Water Supply Industry

  • SUFA Brand Knife Water Gate Valve Corrosion Protection For Water Supply Industry
SUFA Brand Knife Water Gate Valve Corrosion Protection For Water Supply Industry
Product Details:
Place of Origin: China
Brand Name: sufa
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: 50~300TZ73X-10H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/SET
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500 SETS/MONTH
Contact Now
Detailed Product Description
Model: 50~300TZ73X-10H Size: DN80-DN300
Pressure: 1.6-16mpa Temperature: NBR <80C EPDM< 120CFPM <160C
Valve Body Material: WCB Applicable Medium: Water And Oil Vapor, Etc
High Light:

stainless steel knife gate valve

,

resilient wedge gate valve

ADVANTAGE;
o Summary:
o This gate valve with socket ends can be connected with pipes directly without flanges, which leads to convenient installation. Flat bottom seat ring integral with the body, inside and outside epoxy resin coating, wedge wholly bonded with rubber, "o" ring sealing, all insure excellent corrosion protection and reliable sealing capability. This valve is recommended to be installed under the surface box, operated by an adjustable extension spindle.
O Unique Design:
o Valves can be connected and sealed with pipes directly.
o Compact design: one-piece bonnet, non-rising stem.
o Flat bottom seat ring insures no dead space.
o Three "o" ring design for stem back sealing leads to maintenance-free.
O Excellent corrosion protection:
o Inside epoxy resin coating or vitreous enamel (upon request), outside epoxy resin coating.
o Socket head cap bolts, sealed with glue on the top.
Reliable health nature:

o Epoxy resin coating is up to GB/T17219-1998
o Wedge bonded with rubber for the health inspection.o Trims are made of stainless steel or bronze.
Scope of application:

o Potable water supply, industrial fields and so on.



 Technical characteristics :

testing standard DIN3230 or JB/T9092
Nominal pressure 1.0Mpa 1.6Mpa
Strength testing 1.5Mpa 2.4Mpa
Functional testing 1.1MPa 1.76Mpa



O Design standard: DIN3352

O Flange: GB/T17241.6-1998 Neq. DIN2501

O Face to face dimensions: DIN3202 Neq.ISO5752

O Testing standard: DIN3352 Part4

O Working temperature: NBR <80"C

                                       EPDM< 120"

                                       CFPM <160"C



Main components and their materials:

NO

Name

material

1

Body,gland,Connection plate

Gray cast iron ductile Iron with internal and external epoxy resin coating

2

Stem,disc, Bolt rod

1Cr13,1Cr18Ni9TI/

1Cr17Ni12Mo2Ti Stainless steel min.13%Cr

3



Stem nut

ZCuAl10Fe3

Bronze CuAI8Fe

4

shim

PTFE

5

rack

ABS

6

U-shape seal,cover

NBR, EPDM or FBM

7

Connection bolt

Carbon steel

Technical characteristics :



SUFA Brand Knife Water Gate Valve Corrosion Protection For Water Supply Industry 0

SUFA Brand Knife Water Gate Valve Corrosion Protection For Water Supply Industry 1



Testing Conditions

DN50-DN1000  SUFA Brand  Stainless Steel Silence Lift Check Valve

The corner of the inventory

DN50-DN1000  SUFA Brand  Stainless Steel Silence Lift Check Valve

Installation

DN50-DN1000  SUFA Brand  Stainless Steel Silence Lift Check Valve
