Suzhou Ephood Automation Equipment Co., Ltd.
Gas Regulator,Pressure Transmitter,SUFA Water Valve
 |
| Place of Origin: | China |
| Brand Name: | sufa |
| Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
| Model Number: | Z41H-16c |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 50~500/SET |
| Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
| Delivery Time: | within 8-12 working days upon receipt of payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 500 SETS/MONTH |
| Name: | 2 Inch Handwheel ANSI 125/150 Non-rising Stem Resilient Soft Seated Cast Iron Gate Valves For Water | Size: | DN50-600 |
|---|---|---|---|
| Pressure: | 1.6-16mpa | Temperature: | -29-425 |
| Valve Body Material: | WCB | Applicable Medium: | Water And Oil Vapor, Etc |
| High Light: | solid wedge gate valve,stainless steel knife gate valve |
||

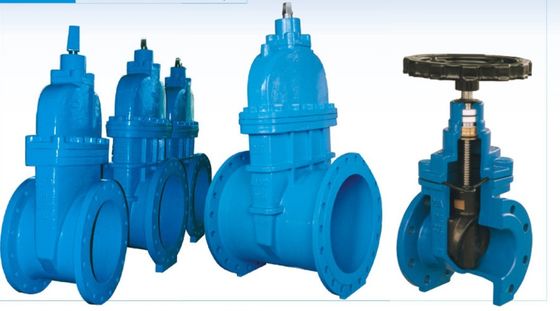

2 inch Handwheel ANSI 125/150 Non-rising stem Resilient Soft seated Cast iron Gate valves For Water
Features of Rising-stem Wedge Gate Valves:
Bolted bonnet
Outside screw and yoke
Rising stem and non-rising handwheel
Flexible wedge, fully guided
Metal-to-metal seat
Renewable seat ring and stem backseat
Manual operation standard, gear operator and actuation available
Butt weld end
Flange end: raised face or ring type joint
Size DN50—DN600
Nominal Pressure PN10/PN16
Working Temperature -10°C~120°C
Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc
| Specification | |
| Size | DN50—DN600 |
| Nominal Pressure | PN10/PN16 |
| Working Temperature | -10°C~120°C |
| Suitable Medium | Chemicals,air,water,steam,oil, acids,salts,etc |
| Standards: | |
| Design standard | DIN3352 F4/F5, MSS SP-70,AWWA C509/515,BS5163 |
| Face to Face | DIN3202 F4/F5, BS5163, ANSI B16.10 |
| Flange Drilling | DIN2533 PN10/PN16, ANSI 125/150,JIS10K |
| Test Inspection | DIN3230, BS6755 |
| Materials: | |
| Body | Cast Iron, Ductile Iron |
| Wedge | Cast Iron, Ductile Iron |
| Stem | Stainless steel |
| Sealing Ring | EPDM |
| O Ring | EPDM |
