Place of Origin: | Made In China |
Brand Name: | DSC |
Model Number: | 642,645 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Each set packed in one wooden case |
Delivery Time: | 4-7work-days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 50sets in 7days |
Name: | Forged Steel Inverted Bucket Steam Trap | Material: | Forged Steel,ASTM A105. WCB |
---|---|---|---|
End Connection: | DN15,DN20,DN25,DN32,DN40 | Max Operating Pressure: | 41Bar,46Bar |
Type: | Inverted Bucket | End Connection Style: | F |
High Light: | steam trap valve,flanged steam trap,Thread End DSC Steam Trap |

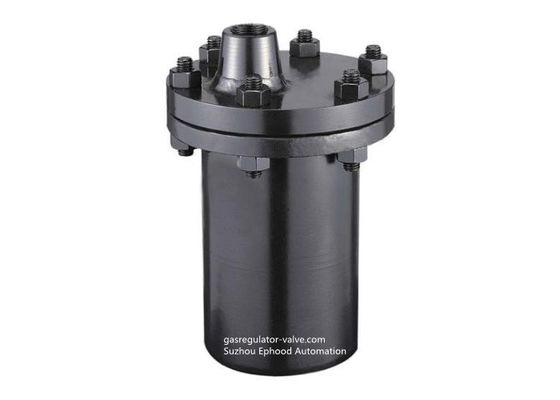

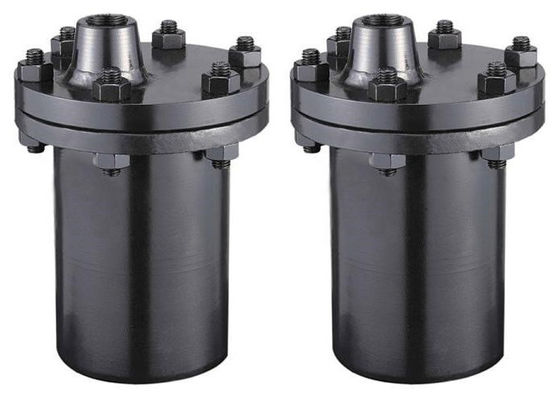

DSC Brand 642- 646 Series Model Forged Steel Inverted Bucket Steam Trap
Features:
1. Those steam traps are installed DSC's patent non-return valve,have long work life
2. We have full confidence in our steam traps,so we promise two years warranty
3. The steam traps are made of forged steel,suitable for the overheated steam that produced by the
Petroleum chemical industry and power plants
4. There are different orifice steam traps can choose
5. Back pressure resistance is strong, suitable for recycling system
6. We can install some other parts to the steam trap according to customer's requirement
7. Special specifications can accept customization
DSC No.642~646 Steam Traps Specifications: unit of size:mm
Model | Flange size | A | B | C | D | E | MOP(KG/CM2) | WT.SE(KG) | WT.FLG(KG) |
642,642F | 15.20 | 171 | 259 | 313 | 121 | 32 | 41 | 14 | 15 |
643,643F | 20.25 | 203 | 292 | 352 | 130 | 37 | 46 | 22 | 23 |
645,645F | 25.32.40 | 248 | 381 | 446 | 169 | 45 | 46 | 42 | 44 |
646,646F | 40.50 | 302 | 435 | 500 | 218 | 54 | 46 | 73 | 75 |
*NPT,BSPT,SW available
Main Parts Material Of This Steam Trap:
CAP & BODY | ASTM A105. WCB |
BUCKET | STAINLESS STEEL |
MECHANISM | STAINLESS STEEL |
SEAT& VALVE | HARDENED S. S |
GASKET | COMPRESSED NON-ASBESTOS |
STRAINER | STAINLESS STEEL |
CHECK VALVE | STAINLESS STEEL |
BOLTS | ASTM A193 B7 |
Water Discharge Capacity Of Those Steam Traps:
