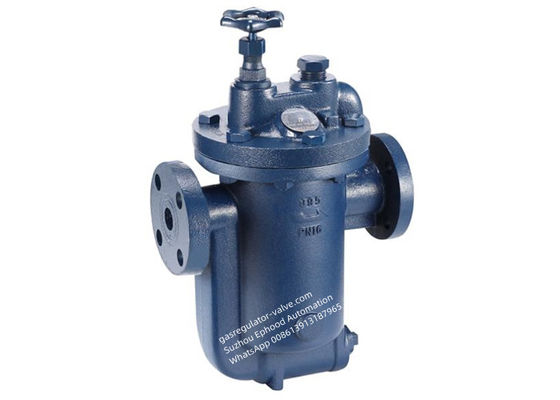

Name: High Versatility Steam Trap 991K Model With Top Inspection Hole With Bypass Valve
Brand: DSC
SKU: 991K
Rating: 4.5 (139 reviews)

Home Products DSC Steam Trap

High Versatility Steam Trap 991K Model With Top Inspection Hole With Bypass Valve

Product Details:

Place of Origin:	Made In China
Brand Name:	DSC
Model Number:	991K

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Each set packed in one wooden case
Delivery Time:	4-7work-days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50sets in 7days

Contact Now

Detailed Product Description

Name:	991K Inverted Bucket Steam Trap With Bypass Valve	Material:	Cast Iron
End Connection:	DN25	Max Operating Pressure:	17Bar
Type:	Inverted Bucket	End Connection Style:	Thread End
Highlight:	Cast Iron Inverted Bucket Steam Trap , 981k Inverted Bucket Steam Traps , DN20 Inverted Bucket Steam Traps

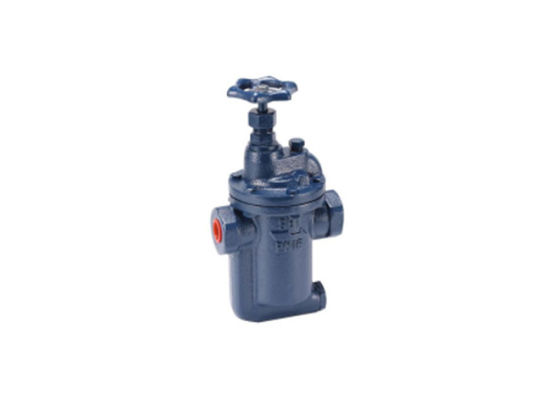

991K Model Cast Iron Material Inverted Bucket Steam Trap With Bypass Valve

Two years warranty

Features :

991K model ,981K model Inverted bucket steam traps have reputation of superior quality and long service life.

Bypass valve are new engineered on trap cap to save labor time, fittings, space and possible leakage from thread.

The new design enable to incorporate good characteristic of conventional Inverted bucket steam trap and bypass valve completed in one.

If have option thermo connector or blowdown valve can be installed, please specify with order.

Matters needing attention:
1. Big size, not resistant to cold
2. Required for a device level, can't skewed

3. Cannot be used for overheat steam

680 Model Steam Traps' specifications:

Model	Port size(mm)	A(mm)	B(mm)	C(mm)	H(mm)	MOP(Bar)	Weight(KG)
981K	DN15,DN20,DN25	76	100	128	8	17	3.4

Material

Body	ASTM A216.WCB cast-steel
Inverted Bucket	stainless steel
Mchanism	stainless steel
Seat	hrdened chrome steel
Gasket	Non-Abestos
Check valve	stainless steel
Filter	stainless steel
Screw	ASTM A193-B7 Alloy steel
Nut	ASTM A194-2H Alloy steel

High Versatility Steam Trap 991K Model With Top Inspection Hole With Bypass Valve 1
